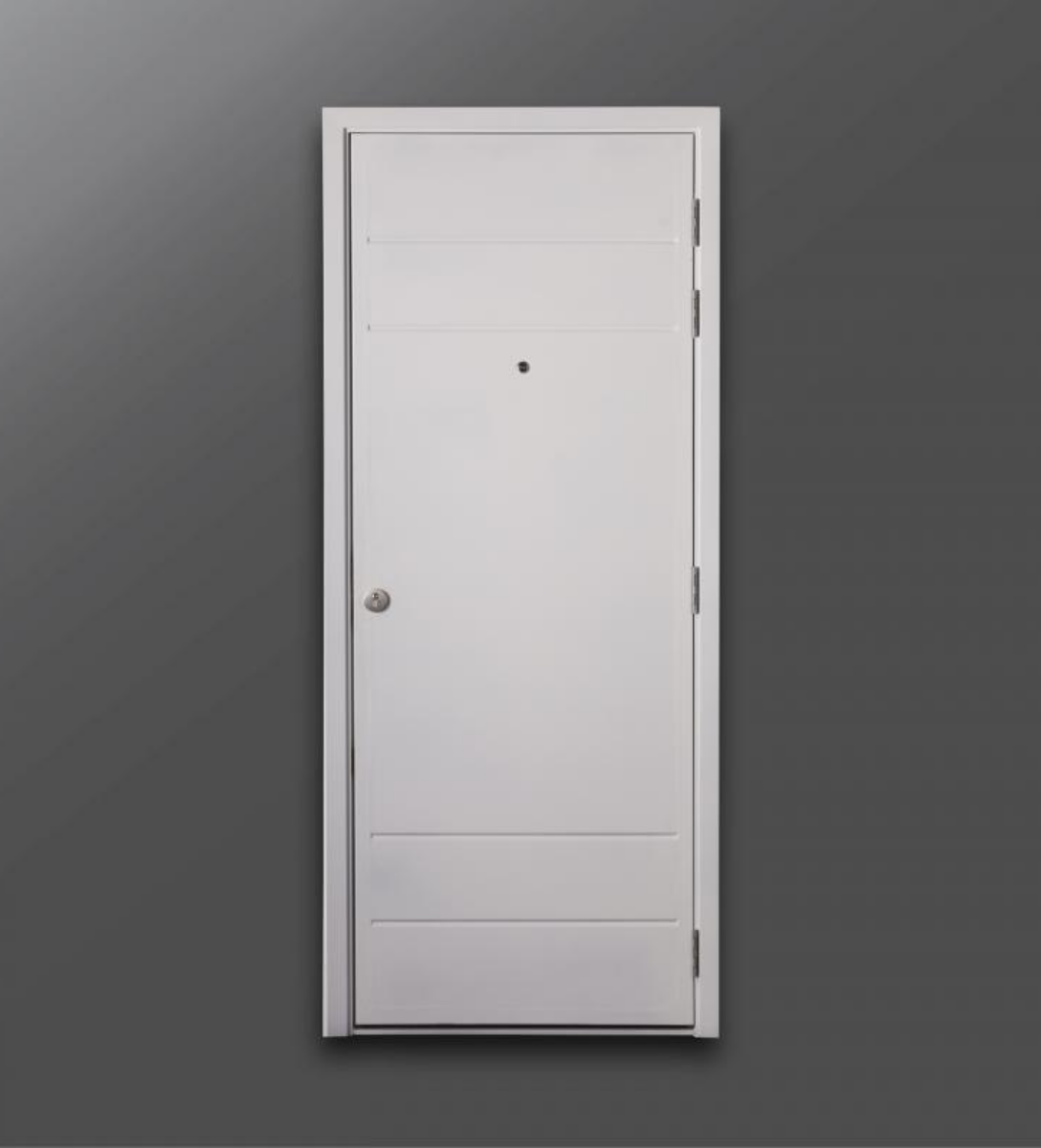

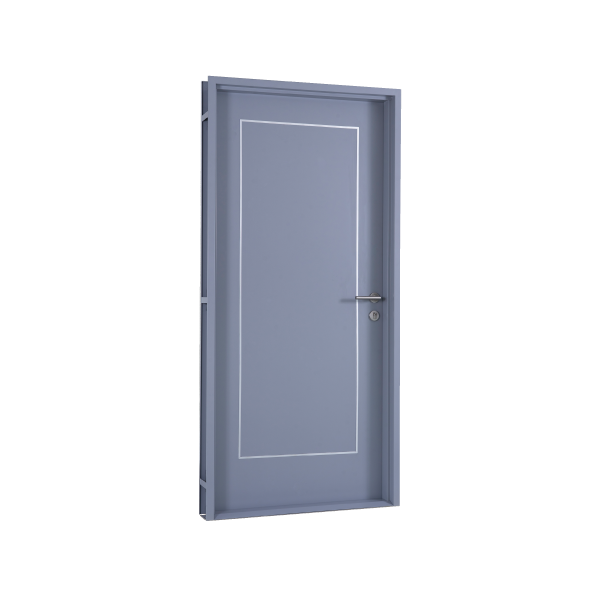

Steel Door

Strength, Durability & Security

ECONFRAME® Steel Door offers a combination of strength, durability, and security that makes it a reliable choice for both residential and commercial properties. They require minimal maintenance and are compatible with modern locking systems, making them a practical and long-lasting investment for any building.

Duroe SUS304

Stainless Steel Hinges

Conceal Joint

Prevent Water Sipping

Duroe Mortise Lock Set

ECONFRAME® Steel Door are available in a versatile selection of colors designed to complement any architectural style. From timeless neutrals to modern hues, our color range offers both aesthetic appeal and long-lasting durability. Each finish is applied using high-quality coating systems to resistance against fading, corrosion, and environmental wear, making our doors as resilient as they are stylish.

The quality and reliability of ECONFRAME® Steel Doors have made them a preferred choice for construction projects. Manufactured using high-quality galvanized steel and precision engineering techniques, these doors are built to perform. ECONFRAME® produces steel doors in a wide variety of sizes to meet the full range of safety, security, and aesthetic requirements. The combination of our galvanized steel door with a strong structure, such as a floor anchor and mortise lock set.

Product Specifications

MATERIAL: GALVANIZED IRON (GI)

MATERIAL THICKNESS AVAILABILITY FOR DOOR LEAF:0.8mm, 1.0mm, 1.2mm

MATERIAL THICKNESS AVAILABILITY FOR DOOR FRAME: 1.0mm, 1.2mm, 1.4mm

DOOR LEAF THICKNESS OPTION: 40mm, 45mm, 50mm

DOOR FRAME THICKNESS: 90mm – 300mm

MAX. DOOR FRAME SIZE FOR SINGLE LEAF: 1200mm (W) x 3000mm (H)

MAX. DOOR FRAME SIZE FOR DOUBLE LEAF: 2400mm (W) x 3000mm (H)

WALL CONSTRUCTION: Brickwall, Partition Wall, Shear Wall, Light Weight Block

CORE CONSTRUCTIONS: Honeycomb

FINISHING: Powder Coated / Spray Paint

IRONMONGERY: Duroe Ironmongery Lockset

Our Steel Supplies in Full Sets

  • Frame
  • Panel
  • Ironmongery
  • Paint Finishing

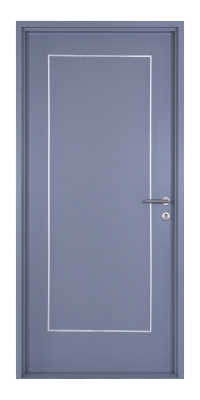

ESD.SG.1
ESD.SG.1

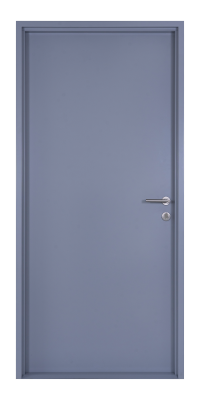

ESD.F.02
ESD.F.02

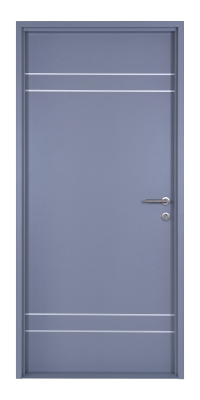

ESD.4H.03
ESD.4H.03

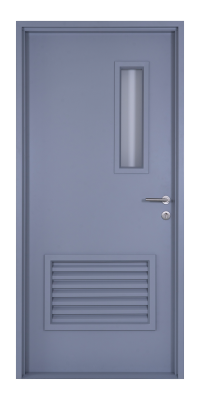

ESD.1L1VP.07
ESD.1L1VP.07
ESD.2V.04
ESD.2V.04

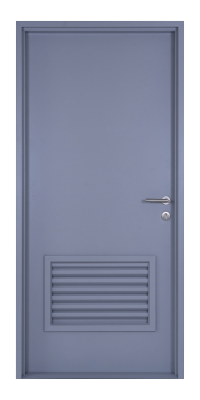

ESD.LV.05
ESD.LV.05

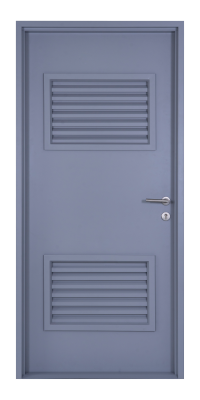

ESD.2L.06
ESD.2L.06

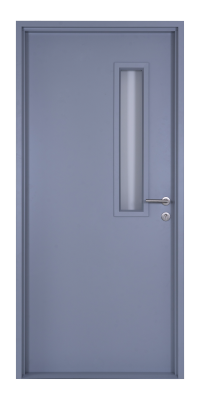

ESD.1VP.08
ESD.1VP.08

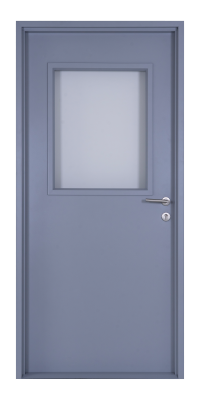

ESD.1LVP.09
ESD.1LVP.09

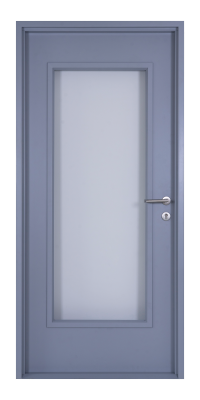

ESD.1FVP.10
ESD.1FVP.10

Colour Selections

DS-01
DS-02
DS-03
DS-04
DS-05

* For illustration purposes only

Door Frame Profile

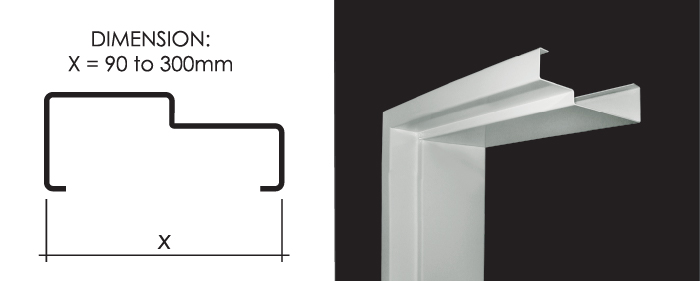

EF1

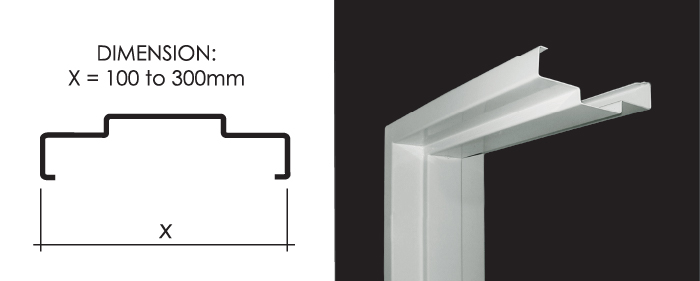

EF3

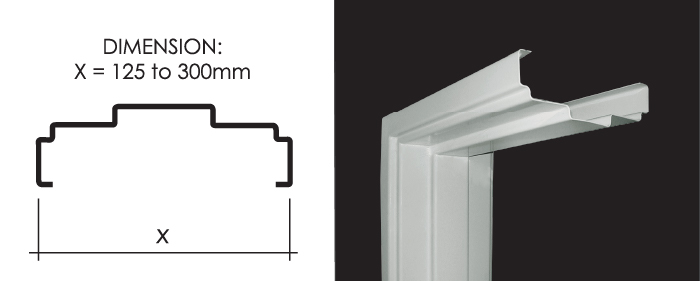

EF8

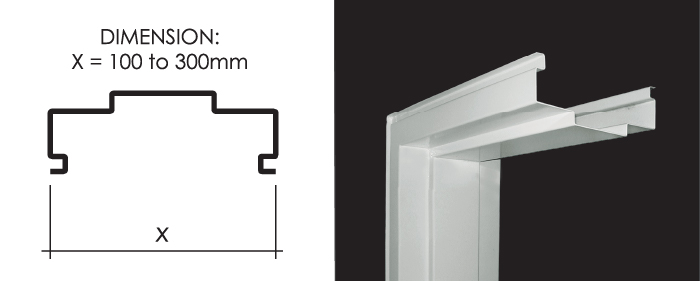

EF17

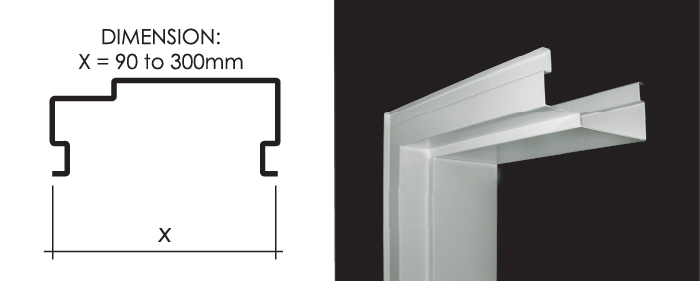

EF18

IRONMONGERY

Lever Handle

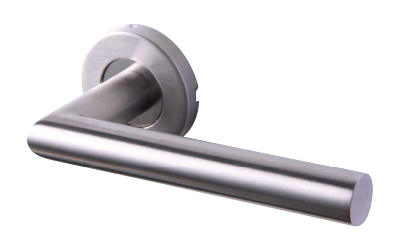

DR-SSLH100

Material: Stainless Steel SUS304

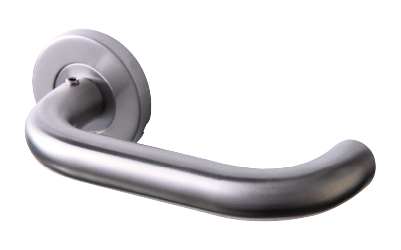

DR-SSLH200

Material: Stainless Steel SUS304

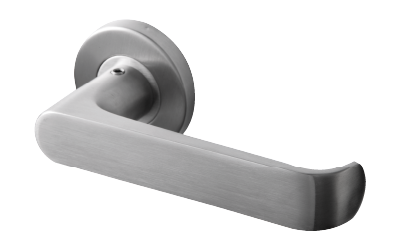

DR-SSLH300

Material: Stainless Steel SUS304

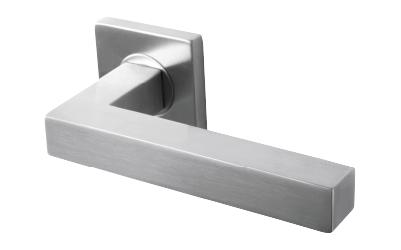

DR-SSLH400

Material: Stainless Steel SUS304

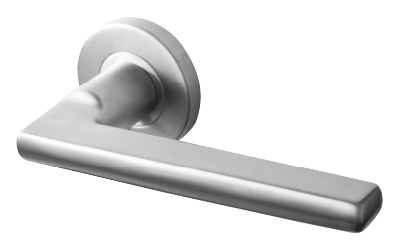

DR-SSLH500

Material: Stainless Steel SUS304

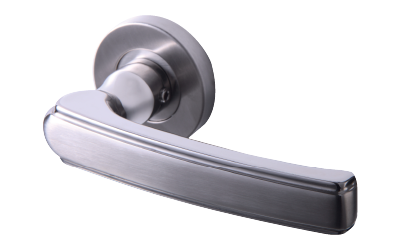

DR-SSLH600

Material: Stainless Steel SUS304

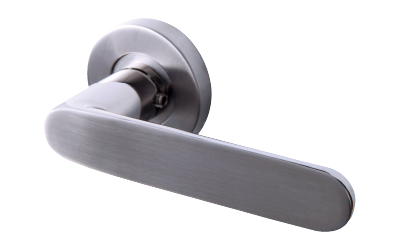

DR-SSLH700

Material: Stainless Steel SUS304

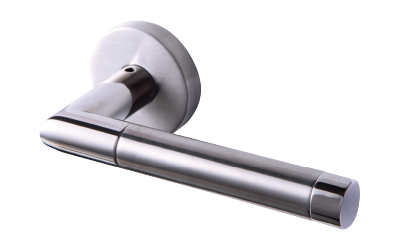

DR-SSLH900

Material: Stainless Steel SUS304

IRONMONGERY

Mortise Lock

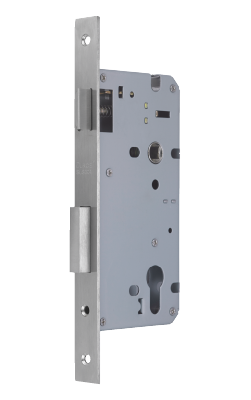

DR-ML85 Mortise Lock

S/S 304 Bolt

S/S 304 Latch

S/S 304 Forend Plate & Striker Plate

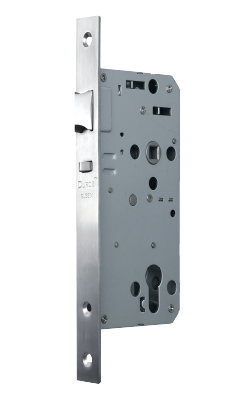

DR-ML85 Mortise Classroom

IRONMONGERY

Others

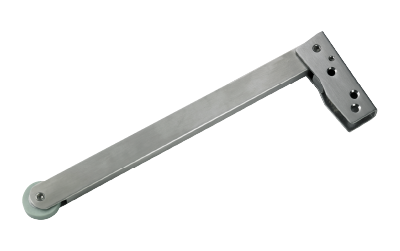

Door Selector

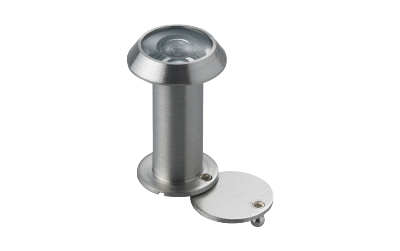

Door Viewer

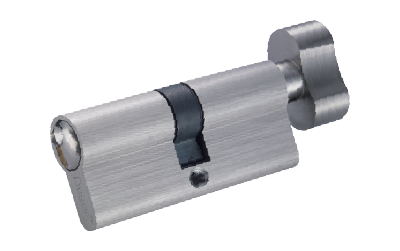

Euro Profile Cylinder

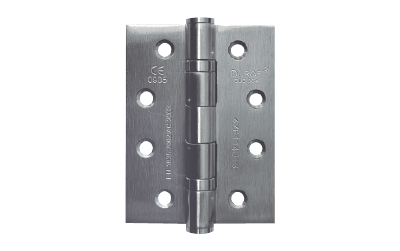

Hinges

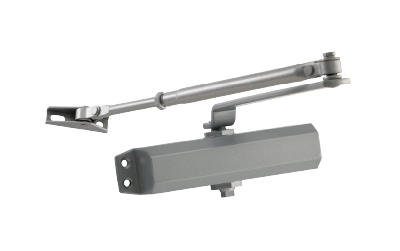

Door Closer
