Door & Window Frame

ECONFRAME® can provide most types and styles & steel door and window frames for construction projects.

ECONFRAME® is one of the manufacturer that are able to deliver both custom and standard frames on the same order. Through our ability to produce uniquely designed door frames, ECONFRAME® offers architects total design freedom.

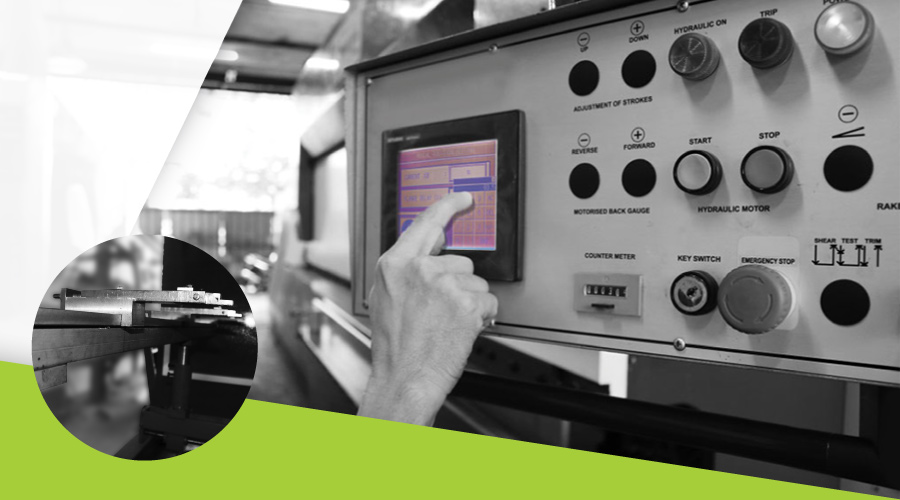

Through our CNC bending capabilities we ensure the attention and a high level of customization. Doors and windows profile can be tailor – made via our CNC machine.

Advantages

1

Warranty up to 10 years for frames made from Zincalume steel.

2

Lintel is not required for span of less than 1200mm.

3

Flexibility in design and profile change for easy construction, elegance and cost saving.

4

Guaranteed material strength.

5

Zincalume frames save money and time.

6

They can be painted with gloss paint without any primer.

7

Zero maintenance cost due to termite attacks.

Our Products

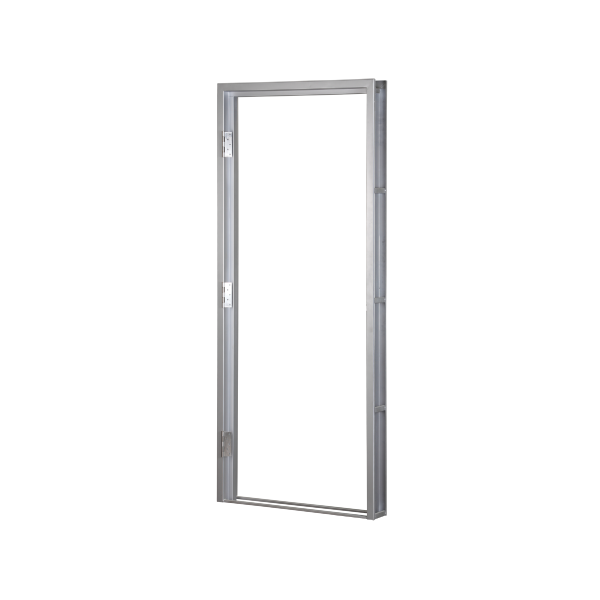

  • Metal door frames for brick wall, shear wall and pre-cast system.
    Profile: 50mm to 300mm
  • Adjustable and fixed louvre metal window for brick wall, sheer wall and pre-cast system.
    Profile: 50mm to 300mm
  • Metal casement window frames integrate with aluminium.
  • Fixed metal louvres.
  • Fire rated door.
  • Steel door.

Door Frame Specifications

MATERIAL:

  •  Zincalume®, Galvanneal, Electro-galvanized, Galvanized Iron Steel.

THICKNESS:

  • 0.8mm to 1.5mm

HARDWARE:

  • Hinges (Mild Steel Zinc plated, Stainless Steel, Nylon Ring)
  • Rubber Buffers, Spreader Bar
  • Column Strap, Brick ties
  • Striker plate

Hinge Fixing Method

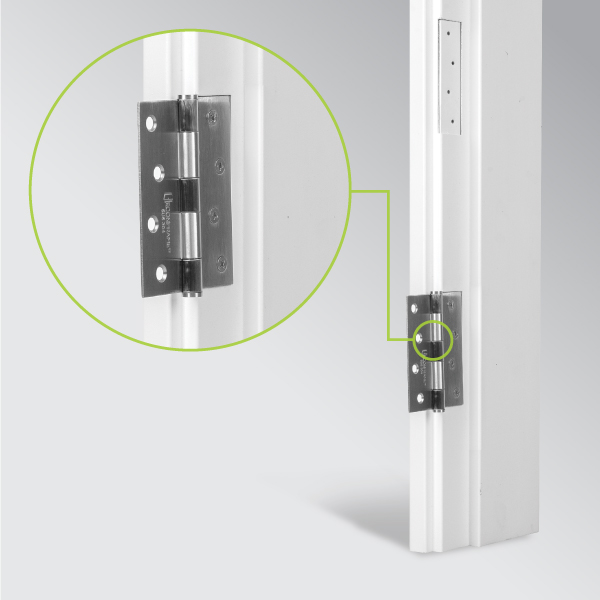

Cut Through & Screw On
Slot In & Weld

Acoustic Sealing Frame

ECONFRAME® high performance acoustic door seal helping reduce the amount of sound that passes through a doorset. Sealing the gaps around a door frame is of prime importance when reducing the amount of sound entering or leaving a room or building. Econframe acoustic seals provide an excellent barrier to airborne sounds and ensure that the acoustic attenuation provided by a doorset is equivalent to the wall or partition it is installed in.



The advantages of ECONFRAME® Acoustic Seals

  • Reducing sound entering or leaving the room.

  • Reducing the amount of cool air leak out of your room.

  • Cut down the intrusion of light and smoke through the gap between door and frame.

  • Easy removable when repainting door and frame.

  • Reducing the sound caused by slamming of door.

  • Ideal for sound studios, cinemas, hospitals, schools, offices, hotels and rooms.

* only available for EF31, EF32, EF33, EF34

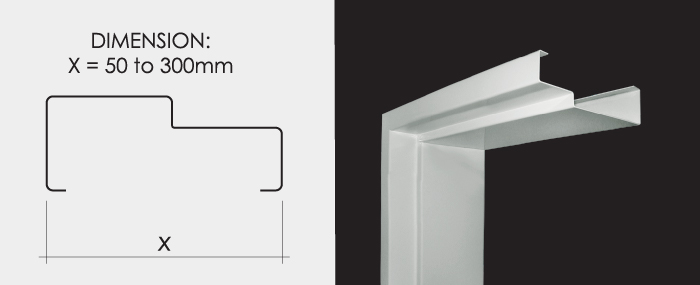

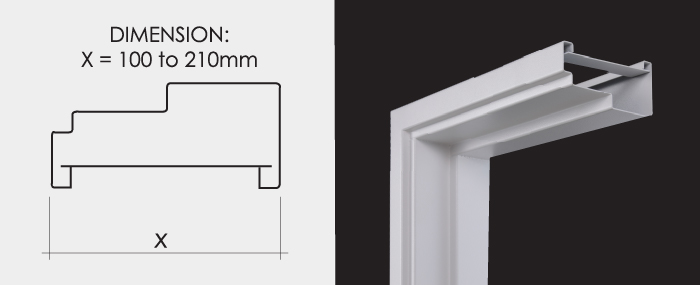

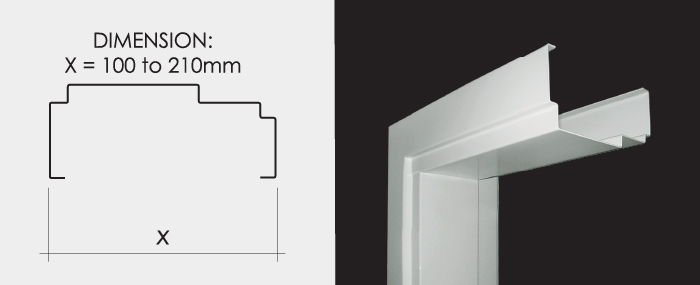

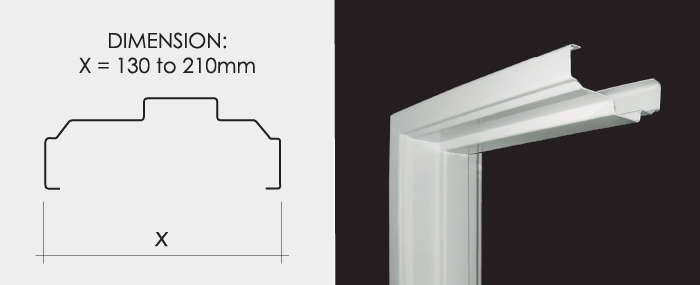

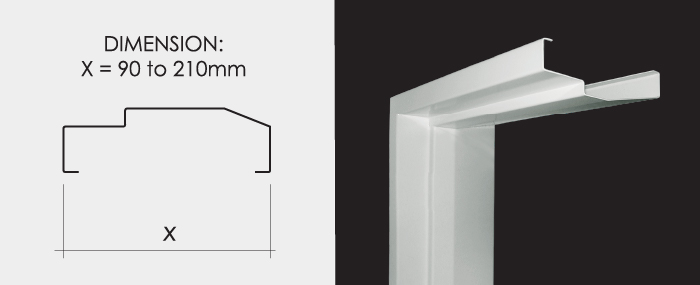

EF1

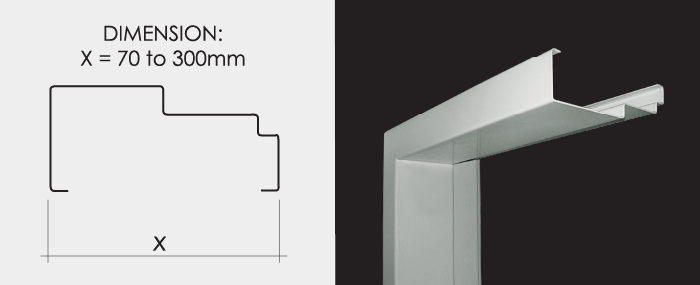

EF2

EF3

EF4

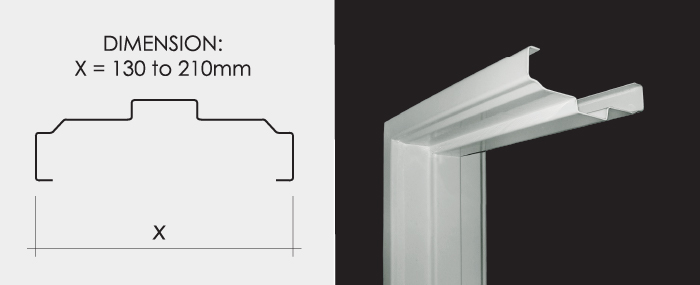

EF5

EF6

EF7

EF8

EF9

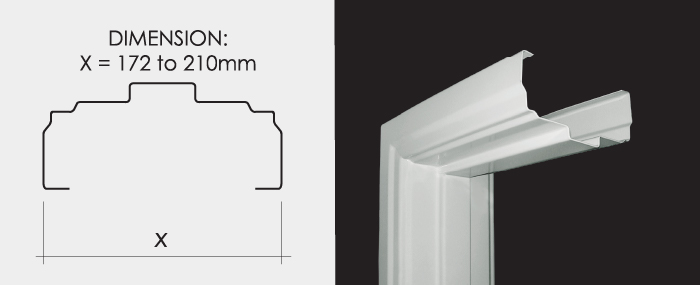

EF10

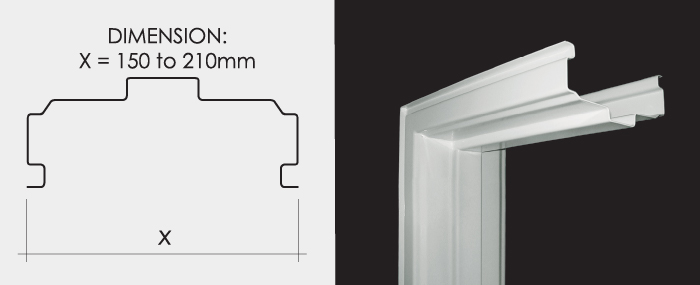

EF11

EF12

EF13

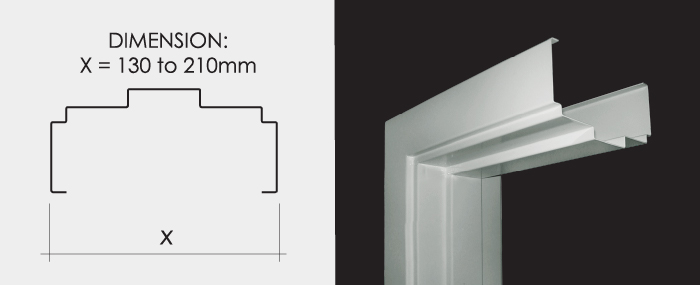

EF14

EF15

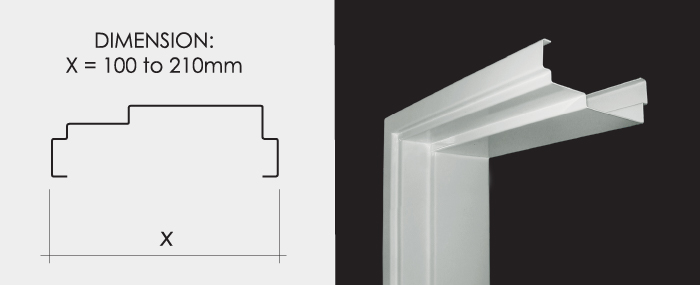

EF16

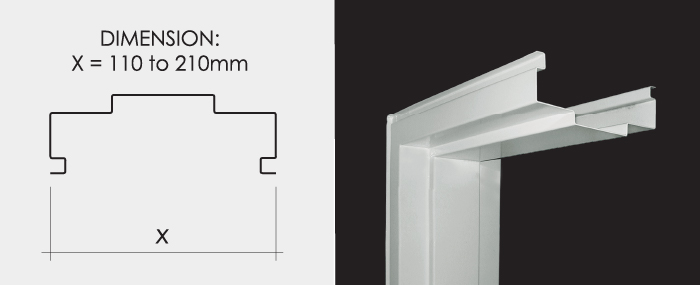

EF17

EF18

EF19

EF20

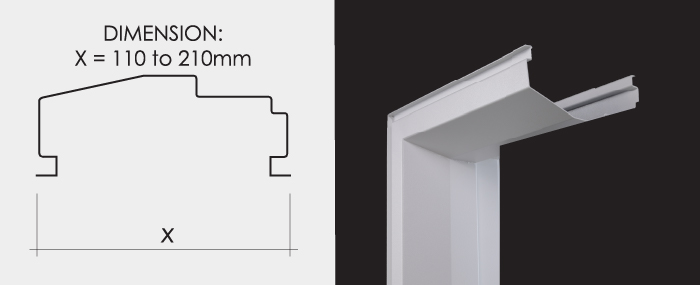

EF21

EF22

EF23

EF24

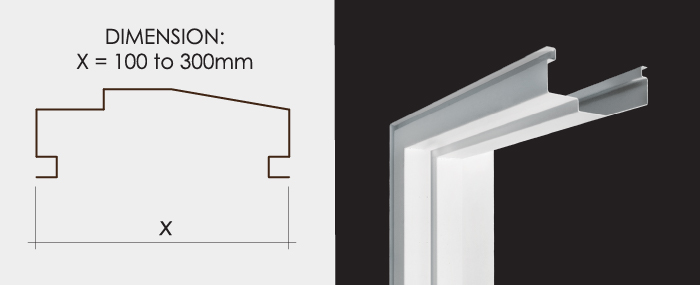

EF25

EF26

EF27

EF28

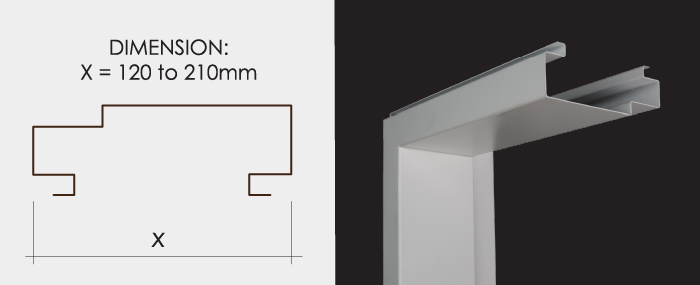

EF29

EF30

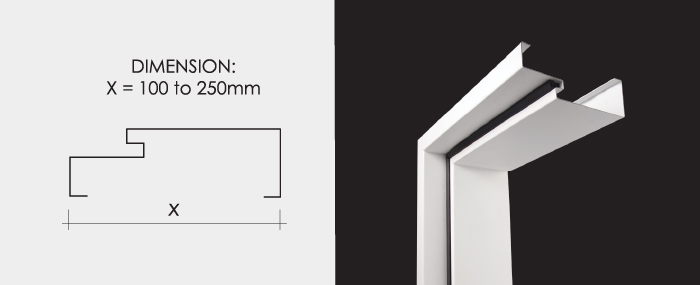

EF31

EF32

EF33

EF34

EF35

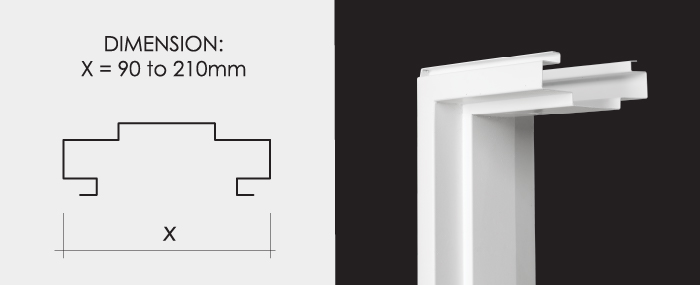

EF36

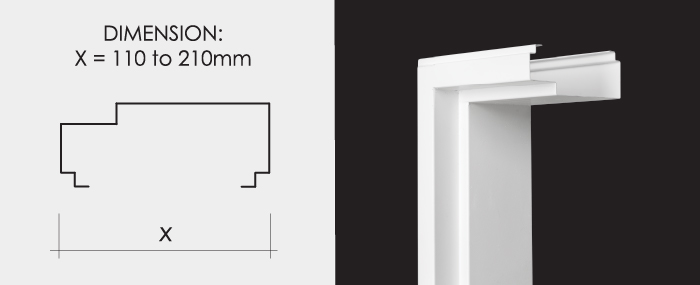

EF37

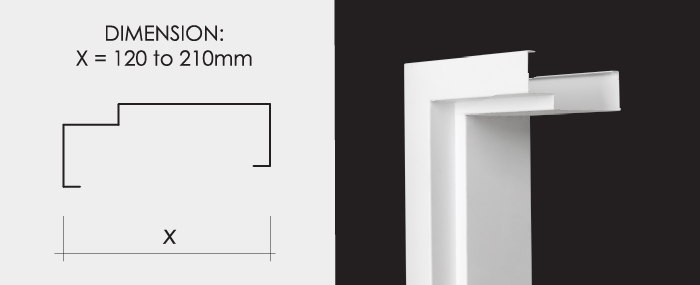

EF38

EF39

EF40

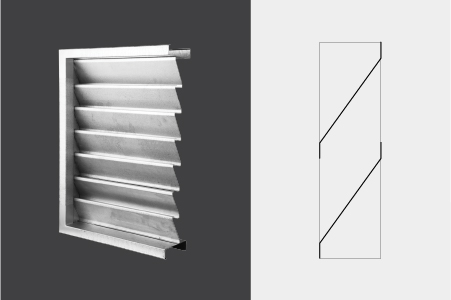

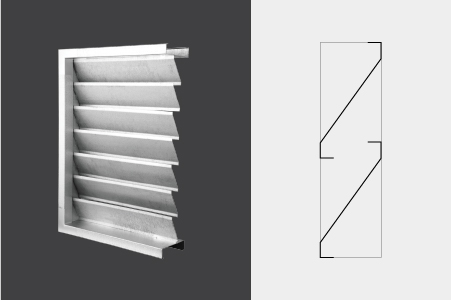

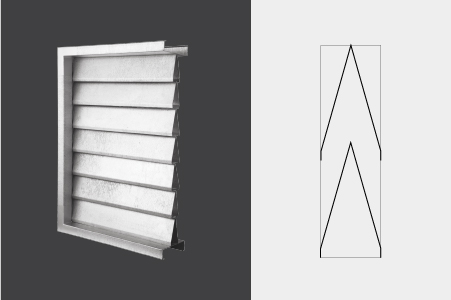

Fixed Metal Louvres
Metal Window

ECONFRAME® fixed ventilation metal Louvres are designed for applications that require intake and exhaust ventilation. All fixed Louvres are made to size as per your order’s specifications and available in a complete range of ZINC Coated and powder coat finishes. Our Louvre windows can have optional 12mm diameter solid steel bar fixed to the blades for total security benefit.

EFVL1

EFVL2

EFVL3

EFVL4

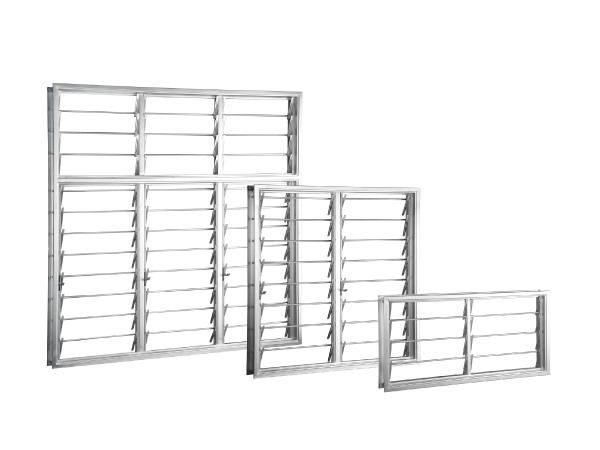

Econframe Metal Window

ECONFRAME® Metal Windows offer a wide range of window styles, all custom made for your project.

  1. Adjustable louvre windows
  2. Fixed louvre windows
  3. Fixed glass windows
  4. Fixed up & down glass, vantilation windows
  5. Casement windows
  6. Metal fixed louvre windows
